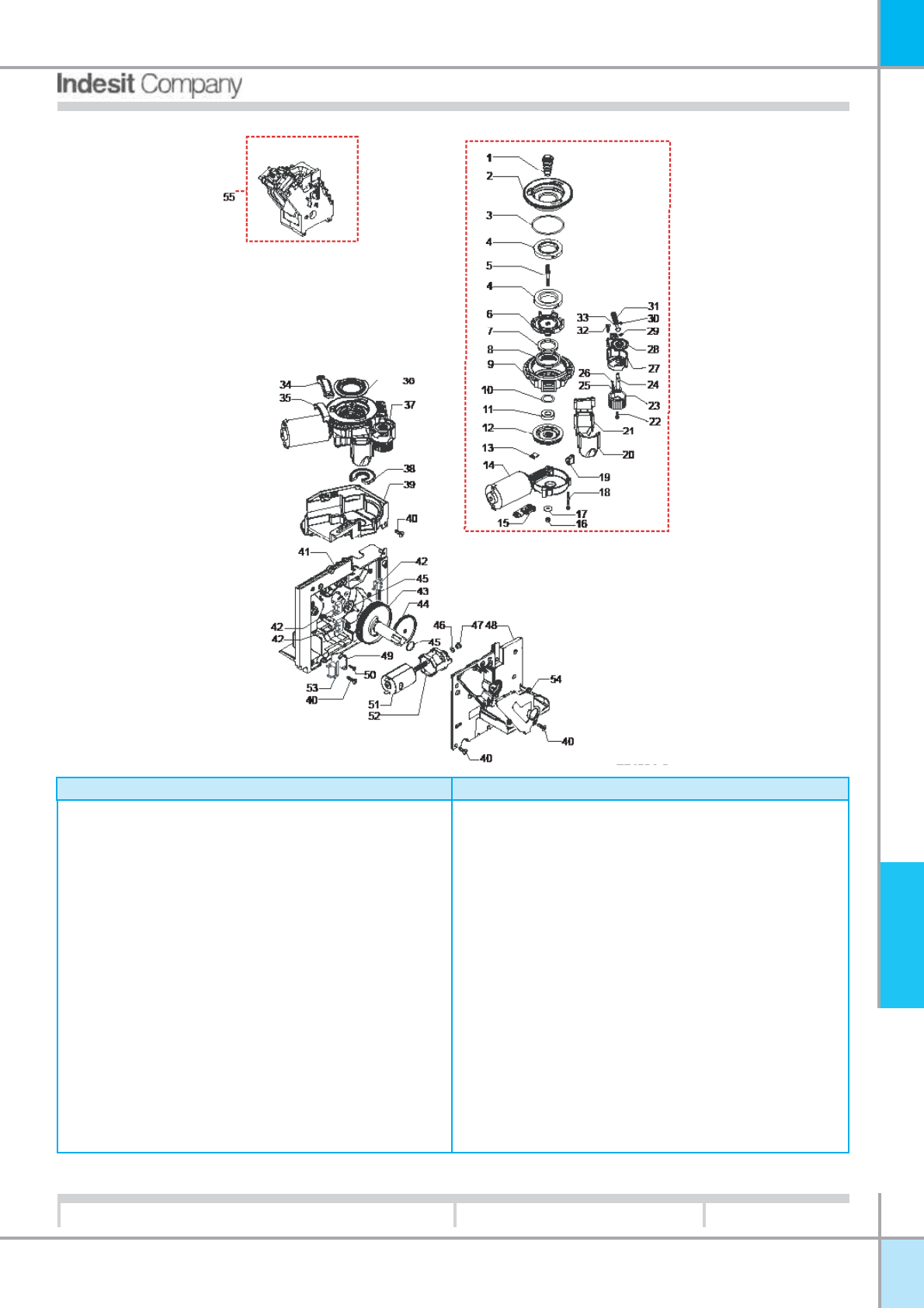

EXPLODED

VIEWS

EN

41

Service Manual

P0055 Coffee Machine - 2006

Edition

2006.08.28

Language

English

Ref. description

Ref. description

1 increase screw

2 coffee grinder upper support

3 O-ring metric 0530-15

4 ceramic burr 48x28

5 increase screw pin m4-m6

6 ceramic burr lower support

7 thrust bearing

8 felt ring od=45.4 id=39.4 h=4

9 ground coffee outlet support body

10 balancing washer 21.8x14x0.25

11 radial bearing

12 grinder burr drive gear

13 coffee grinder pulse sensor

14 coffee grinder motor assy 230v

15 thermal sensor support

16 lock nut m4 din982

17 plain washer id=4.3 od=14 thk. =1.5

18 caphead screw 3.5x30 d.7505

19 worm gear auger central cap

20 coffee outlet shroud cover

21 coffee outlet shroud assy.

22 caphead screw m4x8 uni 7687

23 grind ﬁ neness adjuster knob

24 adjusting pin

25 ball clip

26 s.steel ball d=3.2mm

27 coffee grinding adj. lower support

28 bevel gear z=39 grind adjust.

29 spindle retaining ring d=3.2

30 ring 4 uni 7434

31 grind adjust. worm gear

32 torx screw, k 35x16

33 grind adjust taper pin

34 motor locking ﬂ ange

35 motor support seal

36 coffee grinder seal

37 coffee grinder motor 230v

38 motor antivibration seal

39 motor support

40 torx screw, k 35x12 wn 1423

41 assembly plate w/pin

42 microswitch

43 assembly plate

44 gear

45 gearmotor mylar washer

46 bakeliz. washer d=5.5

47 gearmotor bush

48 assembly plate cover

49 microswitch support

50 torx screw, k 30x8 wn 1452

51 drive motor

52 antivibration mount for motor

53 microswitch

54 boiler compartment cover

55 smart coffee unit
