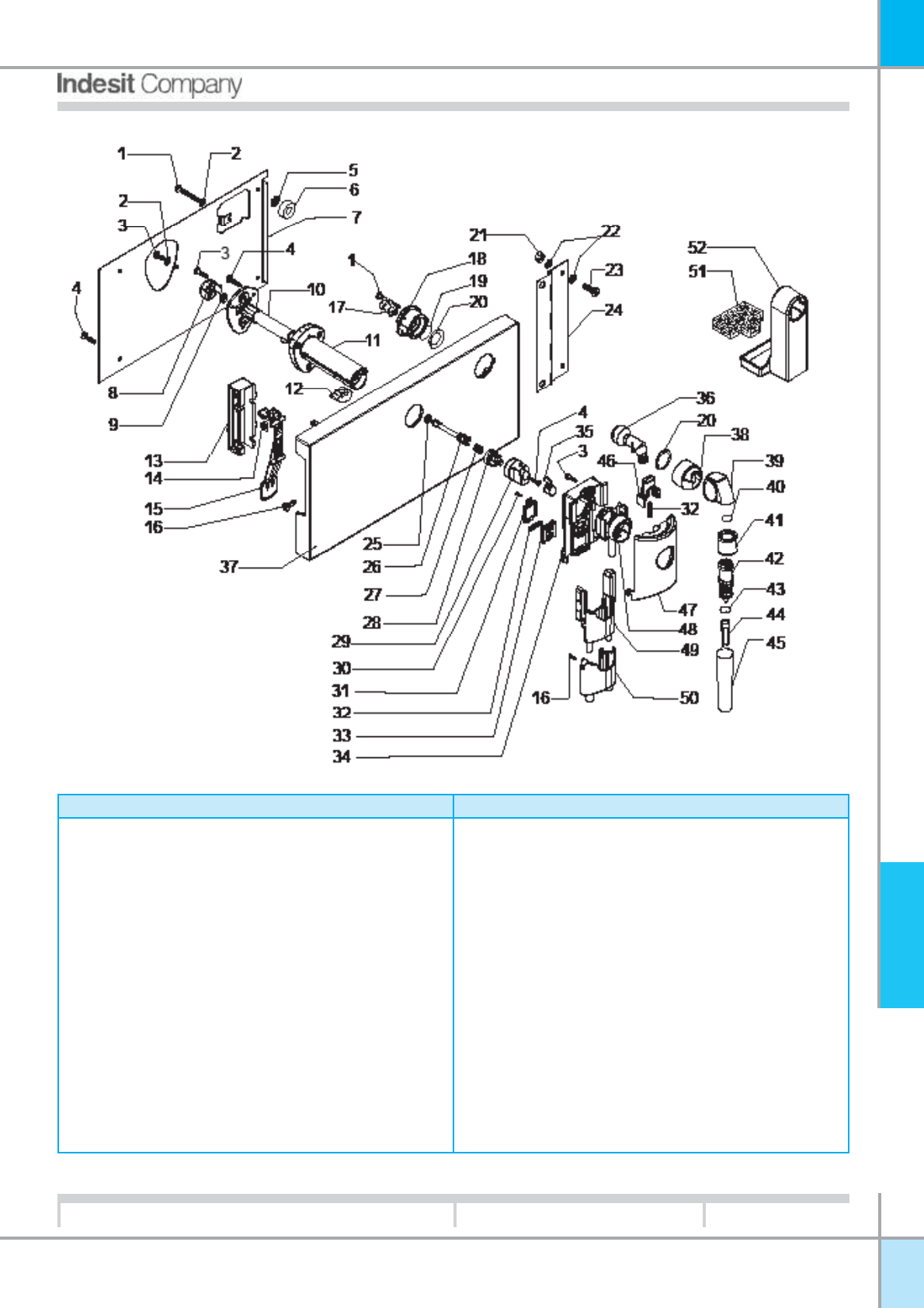

EXPLODED

VIEWS

EN

37

Service Manual

P0055 Coffee Machine - 2006

Edition

2006.08.28

Language

English

Ref. description

Ref. description

1 torx screw, m 3x20 iso 14580

2 washer, uni 8842 a3 s/steel

3 torx screw, m 3x8 din 7500

4 torx screw, k 30x8 wn 1452

5 washer, uni 8842 a6

6 door hinge bush

7 door inner plate

8 coffee delivery hose rear plug

9 coffee delivery hose seal

10 coffee delivery hose

11 coffee dispenser support

12 coffee dispenser seal (h2.5)

13 door button support

14 door button clip

15 door button

16 torx screw, k 30x8

17 Teﬂ on hose holder insert

18 joint support

19 O-ring 117 silicone

20 semi-spherical seal

23 torx screw, m 4x10 head d=8x1.5

24 door hinge assy

25 O-ring metric 0040-20

26 crema adjusting rod

27 crema adjusting rod clip

28 crema adjusting rod support

29 crema adjusting knob

30 torx screw, m 2.5x5 din 7500

31 coffee delivery retaining insert cover

32 spring for coffee dispenser

33 coffee dispenser retaining insert

34 coffee dispenser rear cover

35 crema adjusting knob

36 threaded union for coupling

37 door

38 steam wand ﬁ xed ball joint

39 steam wand mobile ball joint

40 O-ring, metric 0060-20

41 steam wand protection

42 upper pipe for ball joint

43 O-ring 108

44 inner lower sleeve

45 sleeve outer cover

46 coffee dispenser button

47 coffee dispenser front cover

48 coffee dispenser inner body

49 coffee dispenser mobile section assy.

50 coffee dispenser mobile section

51 coffee dispenser sponge

52 coffee dispenser sponge support
